Gorenje

WHT923E5X

Decorative T-shape

Product code: 679566 | Decorative T-shape | Wall mounted cooker hood | Control setting: Button control | Max. noise level: 67 dB(A)re 1 pW | Maximum extraction rate by extraction operation: 560 m³/h | Energy class: B | Gorenje | Product line: G400 | Dimensions (W×H×D): 89.8 × 4.2 × 45 cm

Buy Now
Print Share Download
3
1
2
4
Product Features Technical Details Support

Features

3e50f20f53bead7bc6e885ed8b2327379b77c92c
TouchFree coating Icon

TouchFree coating

Shiny and fingerprint-free finish

All stainless steel surfaces are coated with a special TouchFree film that prevents fingerprint markings, leaving the surface always shiny and making cleaning much easier.

Technical Details

  • Wall mounted cooker hood
  • Venting with air extraction or recirculation
  • Energy class: B
  • Material of housing/chimney: stainless steel / stainless steel
  • Colour of housing/chimney: stainless steel / stainless steel
  • Lightning efficiency class: A
  • Grease filtering efficiency class: B
  • Fluid dynamic efficiency class: C
  • Maximum extraction rate by extraction operation: 560 m³/h
  • Maximum extraction rate by recirculation operation: 420 m³/h
  • Venting tube diameter: 15 cm
  • Air flow by extraction version, step 1: 240 m³/h
  • Air flow by extraction version, step 2: 365 m³/h
  • Air flow by extraction version, step 3: 560 m³/h
  • Mechanic control
  • Control setting: Button control
  • Number of speed positions: 3
  • TouchFree Inox
  • Lamp type: LED
  • On/off light switch
  • Number of lights: 2
  • Power of lights: 6 W
  • Filter material: Washable aluminium with polyurethane foam
  • Coal filter code (optional as separate purchase): 698059
  • Number of filters: 3
  • Recirculation set number: 683038
  • Number of motors: 1
  • No return airflow flap: 150 mm
  • Max. noise level: 67 dB(A)re 1 pW
  • Height: 42 mm
  • Min. height of the chimney: 740 mm
  • Max. height of the chimney: 980 mm
  • Annual energy consumption: 68.9 kWh
  • Dimensions (W×H×D): 89.8 × 4.2 × 45 cm
  • Dimensions of packed product (W×H×D): 101 × 53.8 × 52.4 cm
  • Net weight: 13.3 kg
  • Gross weight: 18.9 kg
  • Connected load: 206 W
  • Nominal current of fuse: 16 amp
  • EAN code: 3838782074042

Support

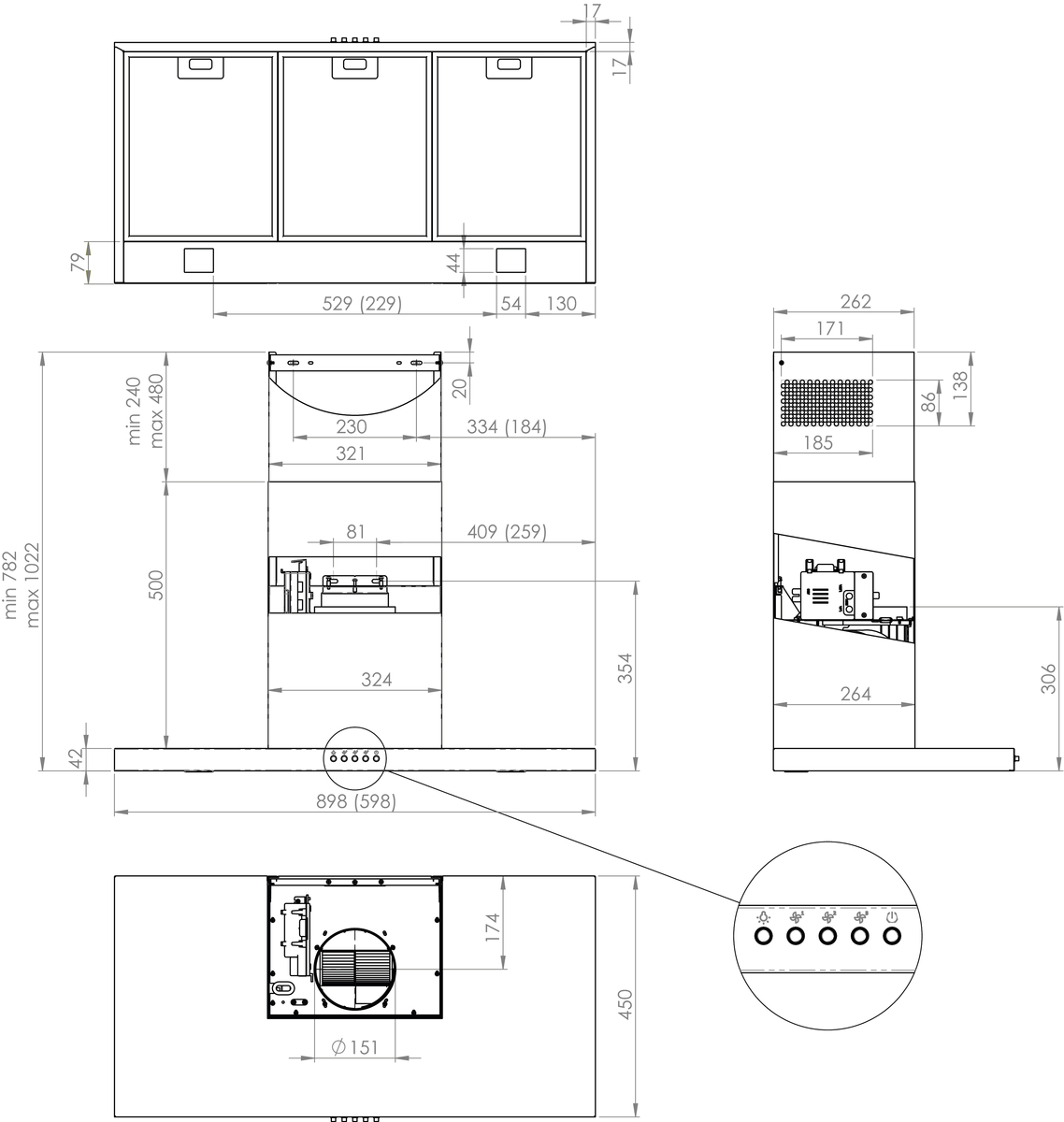

Installation drawing Instructions for use and installation Instructions for use and installation Product sheet
