Gorenje

WHI949EXBG

Freestanding wall decorative cooker hood

Product code: 735479 | Freestanding wall decorative cooker hood | Freestanding wall decorative cooker hood | Wall mounted cooker hood | Max. noise level: 63 dB(A)re 1 pW | Maximum extraction rate by extraction operation: 608 m³/h | Energy class: B | Gorenje | Product line: G400 | Dimensions (W×H×D): 90 × 38 × 33.5 cm

Buy Now
Print Share Download
2
3
1
4
5
Product Features Technical Details Support

Technical Details

  • Wall mounted cooker hood
  • Venting with air extraction or recirculation
  • Energy class: B
  • Material of housing/chimney: Painted steel/glass / stainless steel
  • Colour of housing/chimney: silver / stainless steel
  • Lightning efficiency class: A
  • Grease filtering efficiency class: C
  • Fluid dynamic efficiency class: B
  • Maximum extraction rate by extraction operation: 608 m³/h
  • Maximum extraction rate by recirculation operation: 374 m³/h
  • Venting tube diameter: 15 cm
  • Air flow by extraction version, step 1: 367 m³/h
  • Air flow by extraction version, step 2: 447 m³/h
  • Air flow by extraction version, step 3: 608 m³/h
  • Electronic control
  • Number of speed positions: 3
  • Lamp type: Led strip
  • On/off light switch
  • Number of lights: 1
  • Power of lights: 3 W
  • Filter material: Washable aluminium with polyurethane foam
  • Coal filter code (optional as separate purchase): 808996
  • Number of filters: 1
  • Number of charcoal filters: 2
  • Recirculation set number: 735631
  • Number of motors: 1
  • No return airflow flap: 150 mm
  • Max. noise level: 63 dB(A)re 1 pW
  • Height: 380 mm
  • Min. height of the chimney: 575 mm
  • Max. height of the chimney: 705 mm
  • Annual energy consumption: 59.2 kWh
  • Dimensions (W×H×D): 90 × 38 × 33.5 cm
  • Dimensions of packed product (W×H×D): 99 × 54.5 × 40 cm
  • Net weight: 14.6 kg
  • Gross weight: 19.12 kg
  • Power consumption in standby mode: 0.63 W
  • Connected load: 183 W
  • Nominal current of fuse: 10 amp
  • Product code: 735479
  • EAN code: 3838782389825

Support

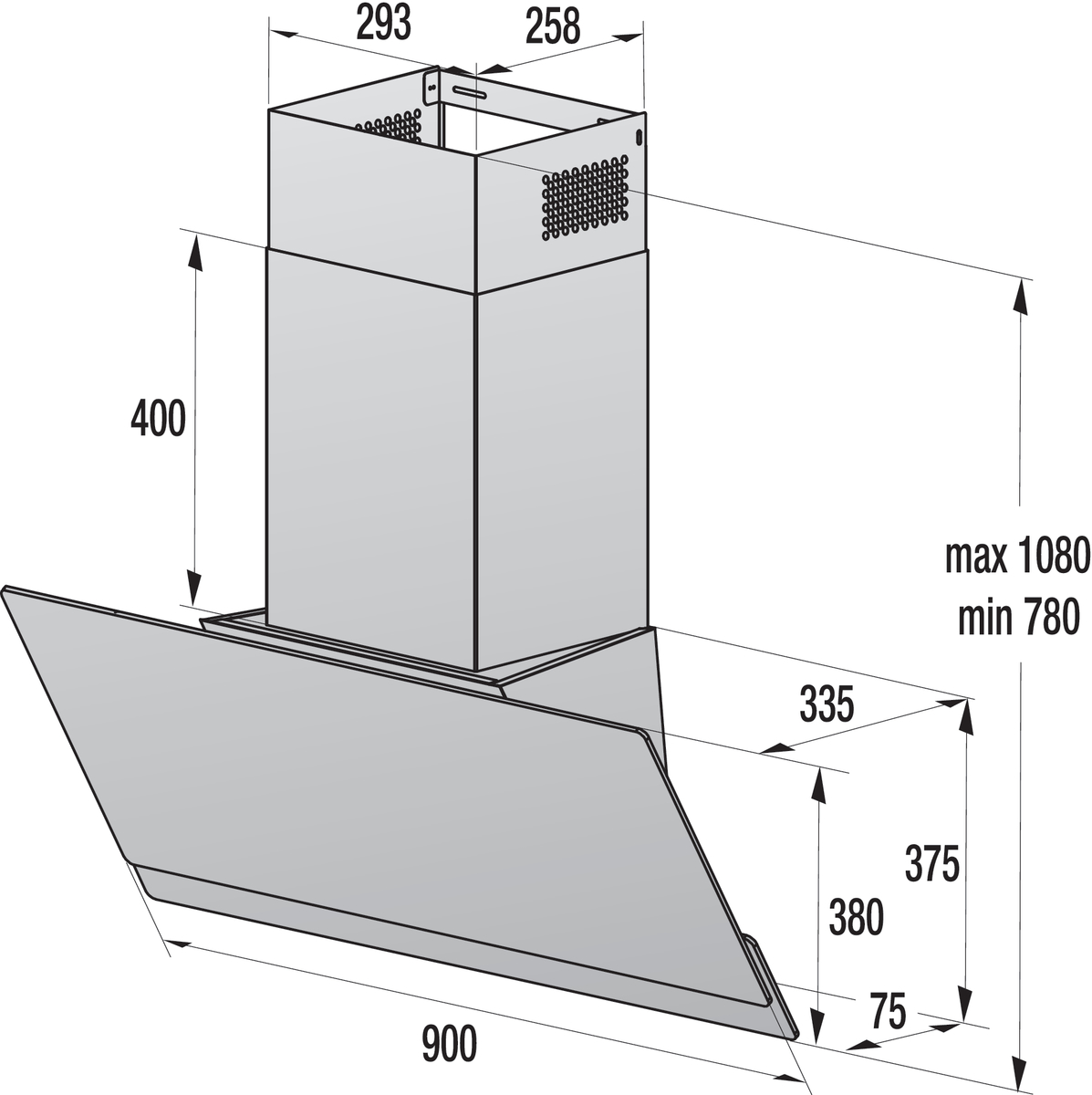

Installation drawing Instructions for use and installation Product sheet
